GENERAL INFORMATION
Product Code
NAG/10-18/W/MW/CCT
Product Range

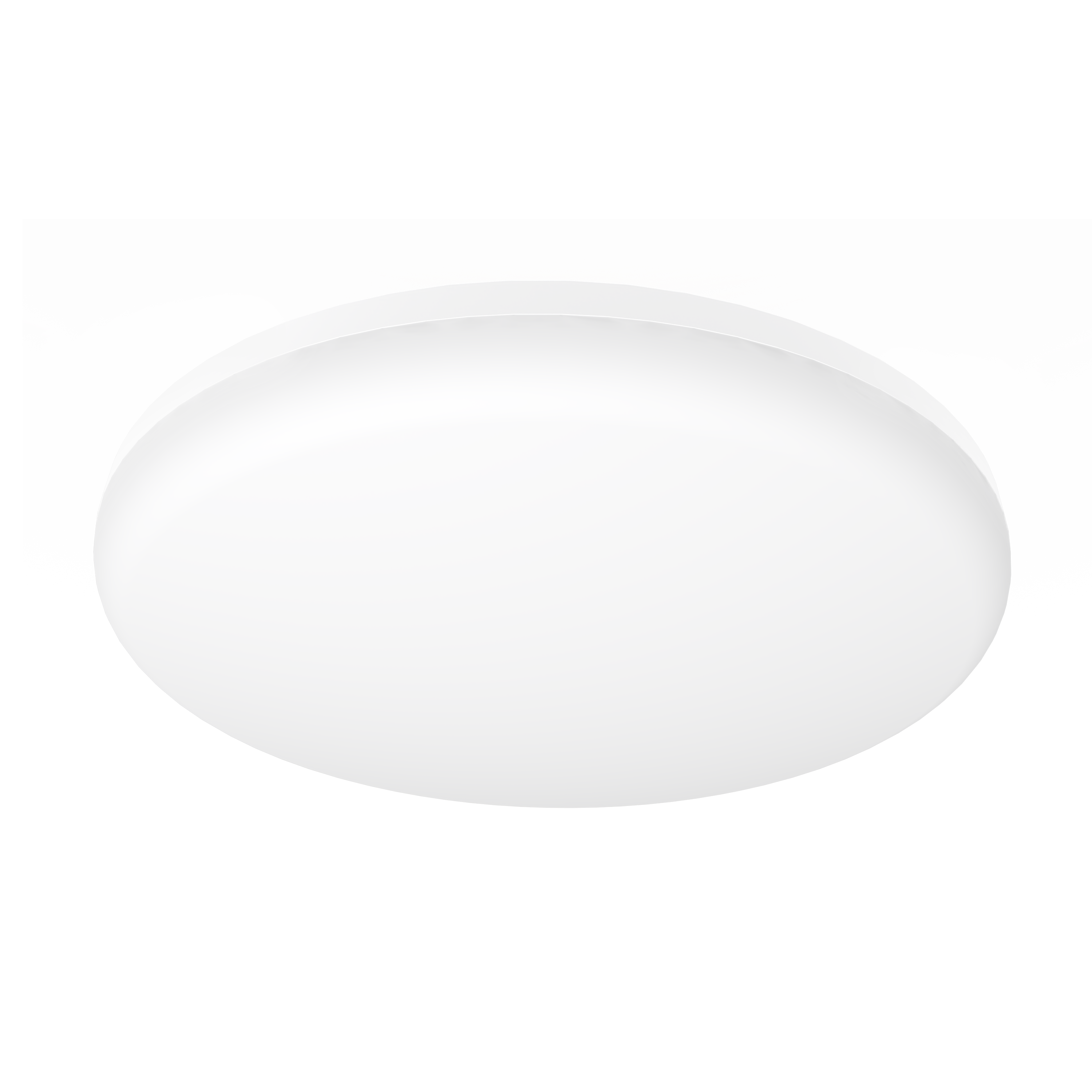

AUGUSTA
Product Category
Amenity
Fixing Method
Surface
IP Rating
44
IK Rating
08
Warranty
7 Years
DIMENSIONS/WEIGHT

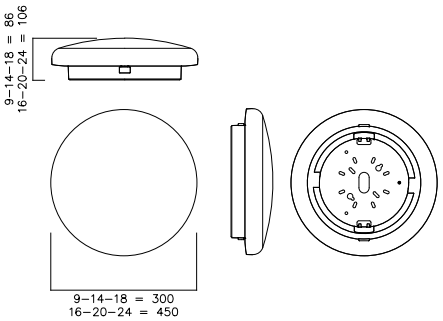

Dimensions
W: 0 - H: 0 - DEPTH: 106 - DIAMETER: Ø450
Cut-out Size (mm)
0
Product Weight (kg)
Construction
Body Material
PC
Body Colour
White
Optical Material
Optical Finish
Termination
4x2x2.5mm sq. Push In Terminal
Driver - Integral or Remote
Integral
PACKAGING
Carton Dimensions (mm)
Quantity per Outer Carton
Total Weight incl. Carton (Kg)
LUMINAIRE PERFORMANCE
Energy Rating
D
Luminaire Lumens (lm)
1376 / 1924 / 2478
Power Consumption (W)
10 / 14 / 18
Efficacy (l.lm/c.W)
138 / 137 / 138
Operating Temp. (Min/Max)
-20°C to 25°C to
LIGHT SOURCE
Type
LED
Correlated Colour Temp.
3000 - 3500 - 4000
Colour Rendering Index (CRI)
>80
Lumen Depreciation
L80 100000
SDCM
<3
ELECTRICAL INPUT
Voltage (V)
220-240V AC
Operating Frequency (Hz)
50/60Hz
Inrush
<25A
Drivers per MCB *
Class
Class 1
Power Factor (PF)
Cable Entry
ELECTRICAL OUTPUT
Forward Current (mA)
Forward Voltage (Vf)
EMERGENCY DATA
Mode of Operation
Battery Duration
Battery Type
Battery Specification
Ballast Lumen Factor (BLF)
DIMMING
DALI
Switch Dim
Corridor Function
Other
SENSORS
Microwave
Yes
PIR
PEC
STANDARDS/APPROVALS
CE / Cert of Conformity
Yes / Yes
Accreditations
BARCODE / E No. / S No.
EAN Number
5056673216519
E Number
7029026
S Number
