GENERAL INFORMATION
Product Code
NAU/UGR19/66/830-40-50/ND
Product Range

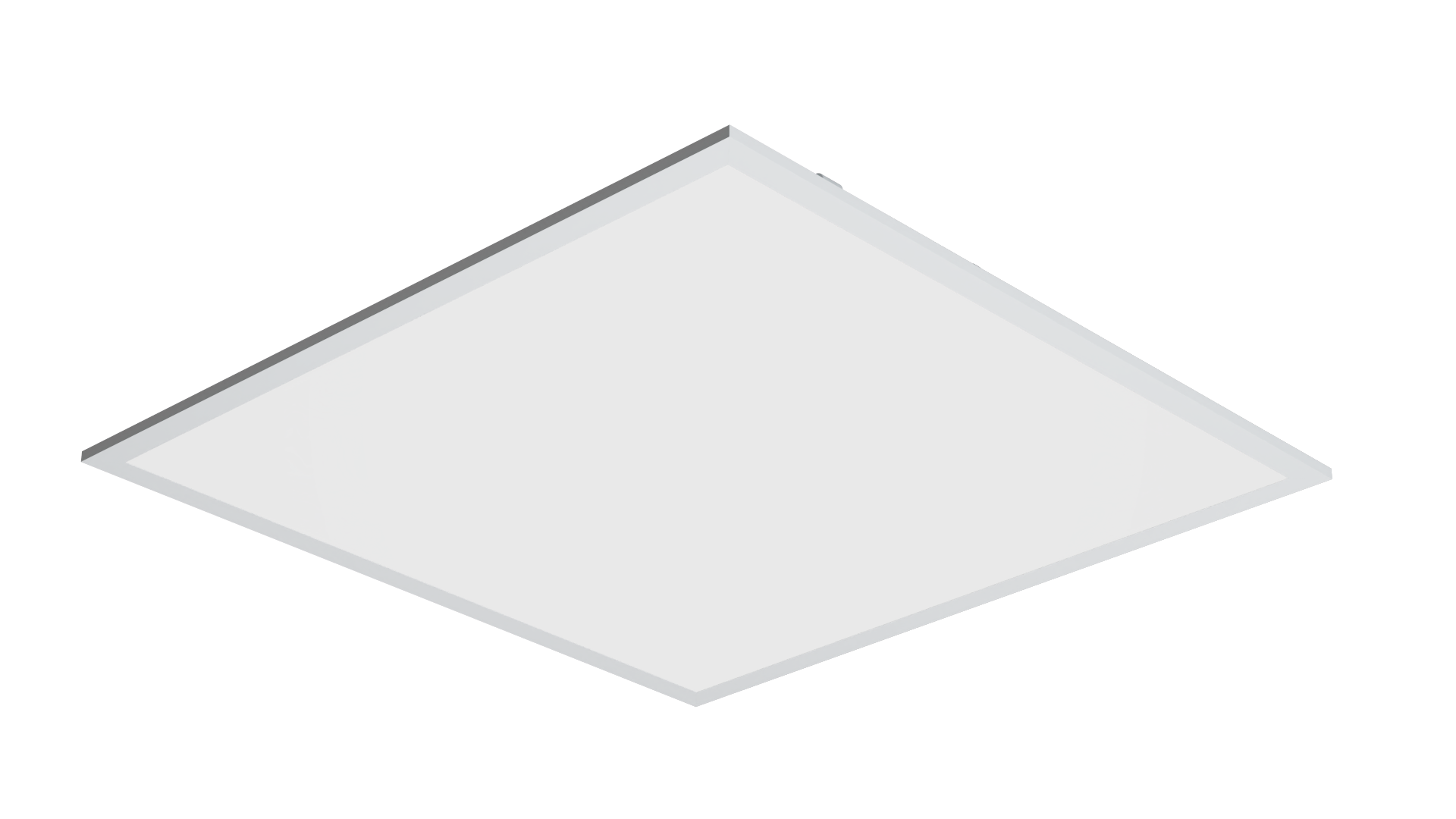

AUSTIN
Product Category
LED Panels
Fixing Method
Recessed
IP Rating
44
IK Rating
Warranty
7 Years
DIMENSIONS/WEIGHT

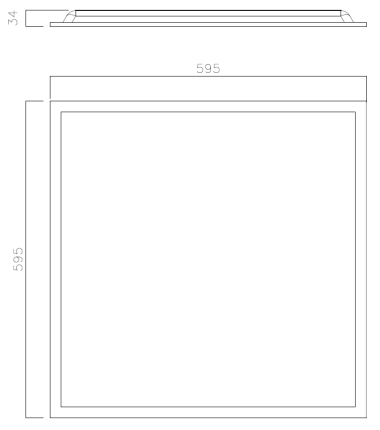

Dimensions
W: 595 - H: 34 - DEPTH: - DIAMETER:
Cut-out Size (mm)
Product Weight (kg)
2.7
Construction
Body Material
Extruded Aluminium
Body Colour
White RAL9003
Optical Material
PS
Optical Finish
Micro prismatic
Termination
Driver - Integral or Remote
PACKAGING
Carton Dimensions (mm)
620x620x30
Quantity per Outer Carton
Total Weight incl. Carton (Kg)
LUMINAIRE PERFORMANCE
Energy Rating
Luminaire Lumens (lm)
160
Power Consumption (W)
Efficacy (l.lm/c.W)
Operating Temp. (Min/Max)
-20°C to 25°C
LIGHT SOURCE
Type
LED
Correlated Colour Temp.
3000K-4000-5000K
Colour Rendering Index (CRI)
>80
Lumen Depreciation
L90 100000
SDCM
<3
ELECTRICAL INPUT
Voltage (V)
See driver
Operating Frequency (Hz)
See driver
Inrush
See driver
Drivers per MCB *
See driver
Class
Class 2
Power Factor (PF)
>0.9
Cable Entry
ELECTRICAL OUTPUT
Forward Current (mA)
-
Forward Voltage (Vf)
EMERGENCY DATA
Mode of Operation
Battery Duration
Battery Type
Battery Specification
Ballast Lumen Factor (BLF)
DIMMING
DALI
Switch Dim
Corridor Function
Other
SENSORS
Microwave
PIR
PEC
STANDARDS/APPROVALS
CE / Cert of Conformity
Yes / Yes
Accreditations
BARCODE / E No. / S No.
EAN Number
5056673229076
E Number
7028830
S Number
