GENERAL INFORMATION
Product Code
NBX30SL/LED/840
Product Range
BRONX SLIM
Product Category
Amenity
Fixing Method
Surface
IP Rating
65
IK Rating
IK10
Warranty
7 Years

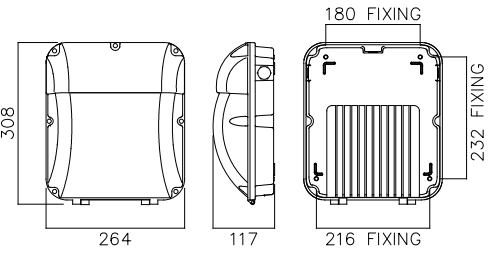

DIMENSIONS/WEIGHT
Dimensions
W: 117 - H: 300 - DEPTH: - DIAMETER:
Cut-out Size (mm)
Product Weight (kg)
1.8
Construction
Body Material
Die Cast Aluminium
Body Colour
Black
Optical Material
Optical Finish
Termination
4 Pole Terminal Block
Driver - Integral or Remote
Integral
PACKAGING
Carton Dimensions (mm)
Quantity per Outer Carton
Total Weight incl. Carton (Kg)
LUMINAIRE PERFORMANCE
Energy Rating
F
Luminaire Lumens (lm)
2490
Power Consumption (W)
28
Efficacy (l.lm/c.W)
88
Operating Temp. (Min/Max)
-20°C to 25°C
LIGHT SOURCE
Type
LED
Correlated Colour Temp.
4000
Colour Rendering Index (CRI)
>80
Lumen Depreciation
L80 100000
SDCM
<3
ELECTRICAL INPUT
Voltage (V)
220-240V AC
Operating Frequency (Hz)
50/60Hz
Inrush
<25A
Drivers per MCB *
B10=16 B16=28
Class
Class 1
Power Factor (PF)
>0.95
Cable Entry
Side
ELECTRICAL OUTPUT
Forward Current (mA)
850
Forward Voltage (Vf)
29
EMERGENCY DATA
Mode of Operation
Battery Duration
Battery Type
Battery Specification
Ballast Lumen Factor (BLF)
DIMMING
DALI
Switch Dim
Corridor Function
Other
SENSORS
Microwave
PIR
PEC
STANDARDS/APPROVALS
CE / Cert of Conformity
Yes / Yes
Accreditations
BARCODE / E No. / S No.
EAN Number
5055943041158
E Number
7703164
S Number
