GENERAL INFORMATION
Product Code
NCR31-52/830-840
Product Range
CORNELL
Product Category
Surface Mount
Fixing Method
Surface
IP Rating
44
IK Rating
IK08
Warranty
7 Years

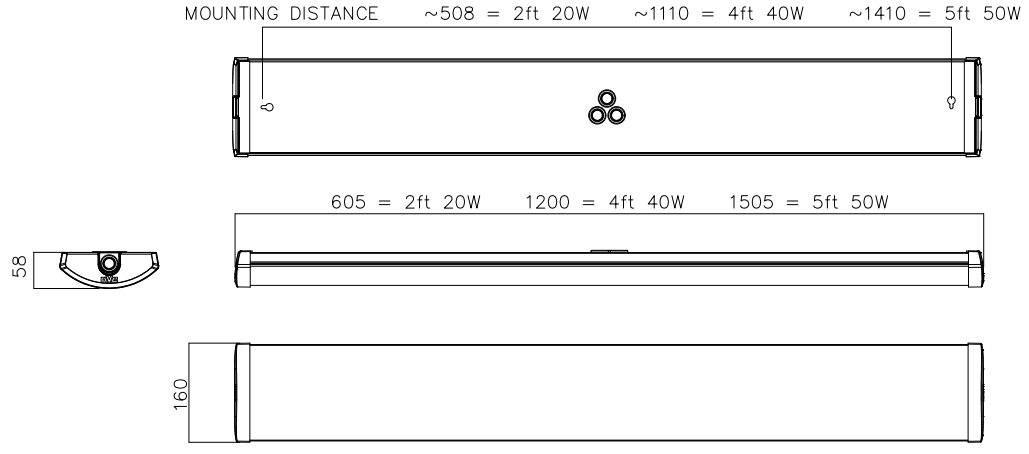

DIMENSIONS/WEIGHT
Dimensions
W: 160 - H: 58 - DEPTH: - DIAMETER:
Cut-out Size (mm)
Product Weight (kg)
4.5
Construction
Body Material
Steel
Body Colour
White RAL9016
Optical Material
Optical Finish
Termination
5x2x2.5mm sq. Push In Terminal
Driver - Integral or Remote
Integral
PACKAGING
Carton Dimensions (mm)
Quantity per Outer Carton
Total Weight incl. Carton (Kg)
2.9
LUMINAIRE PERFORMANCE
Energy Rating
C
Luminaire Lumens (lm)
5188 / 6581 / 7879 / 9182
Power Consumption (W)
30.6 / 37.2 / 44.7 / 52.2
Efficacy (l.lm/c.W)
169 / 177 / 176 / 176
Operating Temp. (Min/Max)
-20°C to 25°C
LIGHT SOURCE
Type
LED
Correlated Colour Temp.
3000 / 4000
Colour Rendering Index (CRI)
>80
Lumen Depreciation
L90 100000
SDCM
<3
ELECTRICAL INPUT
Voltage (V)
220-240V AC
Operating Frequency (Hz)
50
Inrush
16A @ 100us
Drivers per MCB *
B10=17 B16=28 C10=29 C16=48
Class
Class 1
Power Factor (PF)
>0.95
Cable Entry
Ends / Rear
ELECTRICAL OUTPUT
Forward Current (mA)
-
Forward Voltage (Vf)
EMERGENCY DATA
Mode of Operation
Battery Duration
Battery Type
Battery Specification
Ballast Lumen Factor (BLF)
DIMMING
DALI
Switch Dim
Corridor Function
Other
SENSORS
Microwave
PIR
PEC
STANDARDS/APPROVALS
CE / Cert of Conformity
Yes / Yes
Accreditations
BARCODE / E No. / S No.
EAN Number
5056673217592
E Number
7220180
S Number
