GENERAL INFORMATION
Product Code
NCR31-52/DD/830-840
Product Range

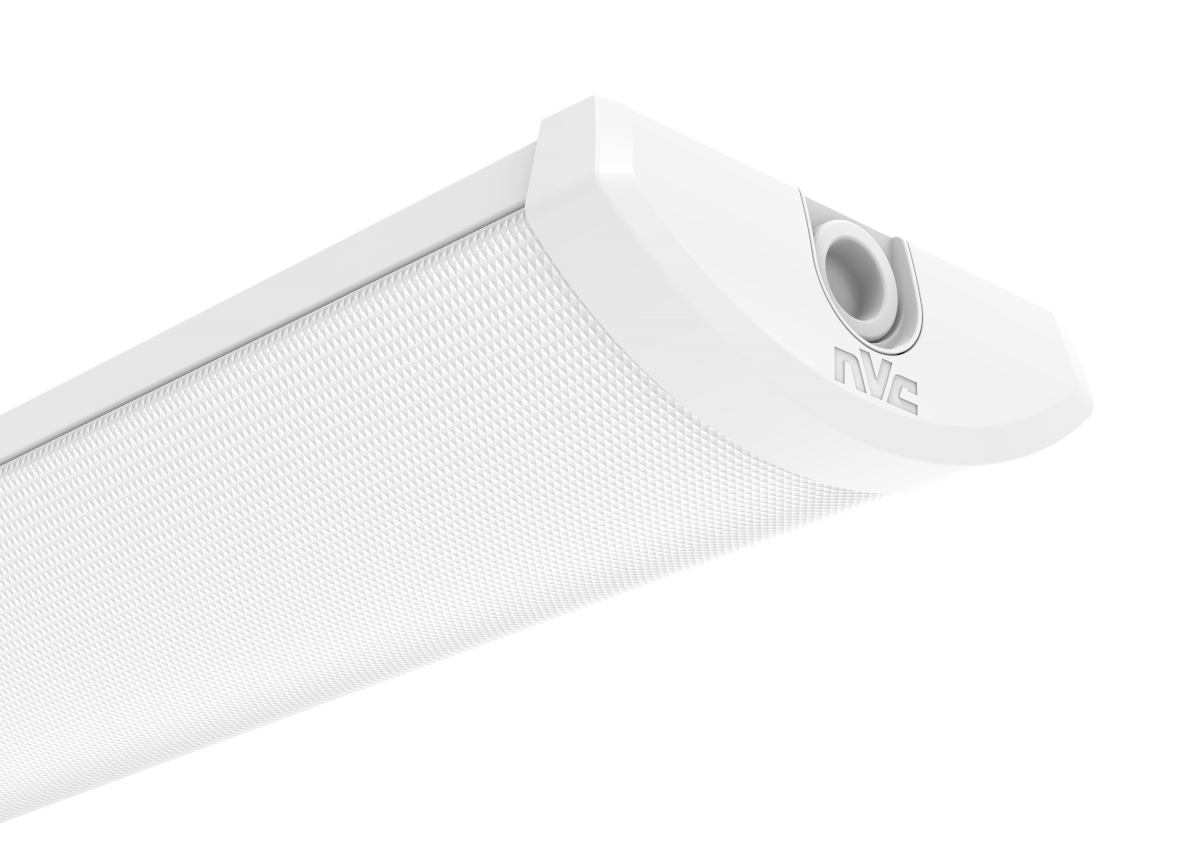

CORNELL
Product Category
Surface Mount
Fixing Method
Surface
IP Rating
44
IK Rating
IK08
Warranty
7 Years
DIMENSIONS/WEIGHT
Dimensions
W: 160 - H: 58 - DEPTH: - DIAMETER:
Cut-out Size (mm)
Product Weight (kg)
5.75
Construction
Body Material
Steel
Body Colour
White RAL9016
Optical Material
Optical Finish
Termination
5x2x2.5mm sq. Push In Terminal
Driver - Integral or Remote
Integral
PACKAGING
Carton Dimensions (mm)
Quantity per Outer Carton
Total Weight incl. Carton (Kg)
2.9
LUMINAIRE PERFORMANCE
Energy Rating
C
Luminaire Lumens (lm)
5188 / 6581 / 7879 / 9182
Power Consumption (W)
30.6 / 37.2 / 44.7 / 52.2
Efficacy (l.lm/c.W)
169 / 177 / 176 / 176
Operating Temp. (Min/Max)
-20°C to 25°C
LIGHT SOURCE
Type
LED
Correlated Colour Temp.
3000 / 4000
Colour Rendering Index (CRI)
>80
Lumen Depreciation
L90 100000
SDCM
<3
ELECTRICAL INPUT
Voltage (V)
220-240V AC
Operating Frequency (Hz)
50
Inrush
16A @ 100us
Drivers per MCB *
B10=17 B16=28 C10=29 C16=48
Class
Class 1
Power Factor (PF)
>0.95
Cable Entry
Ends / Rear
ELECTRICAL OUTPUT
Forward Current (mA)
-
Forward Voltage (Vf)
EMERGENCY DATA
Mode of Operation
Battery Duration
Battery Type
Battery Specification
Ballast Lumen Factor (BLF)
DIMMING
DALI
Yes
Switch Dim
Corridor Function
Other
SENSORS
Microwave
PIR
PEC
STANDARDS/APPROVALS
CE / Cert of Conformity
Yes / Yes
Accreditations
BARCODE / E No. / S No.
EAN Number
5056673217615
E Number
7220182
S Number
4339164
