GENERAL INFORMATION
Product Code
NHU12/ELID/830-840-857
Product Range

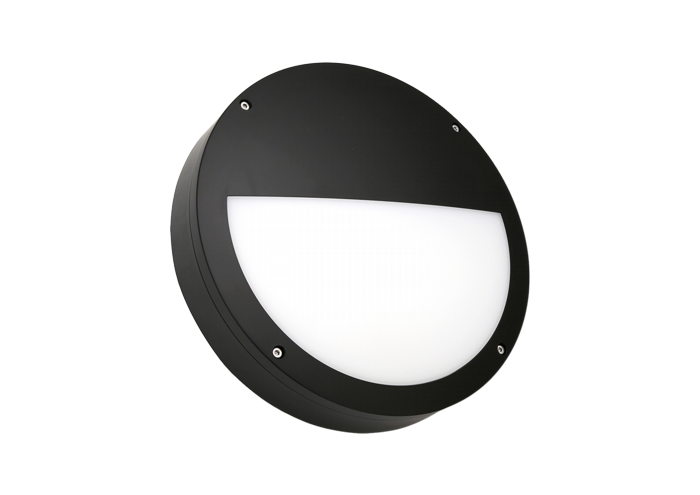

HUNTSVILLE
Product Category
Amenity
Fixing Method
Surface
IP Rating
65
IK Rating
IK10
Warranty
7 Years

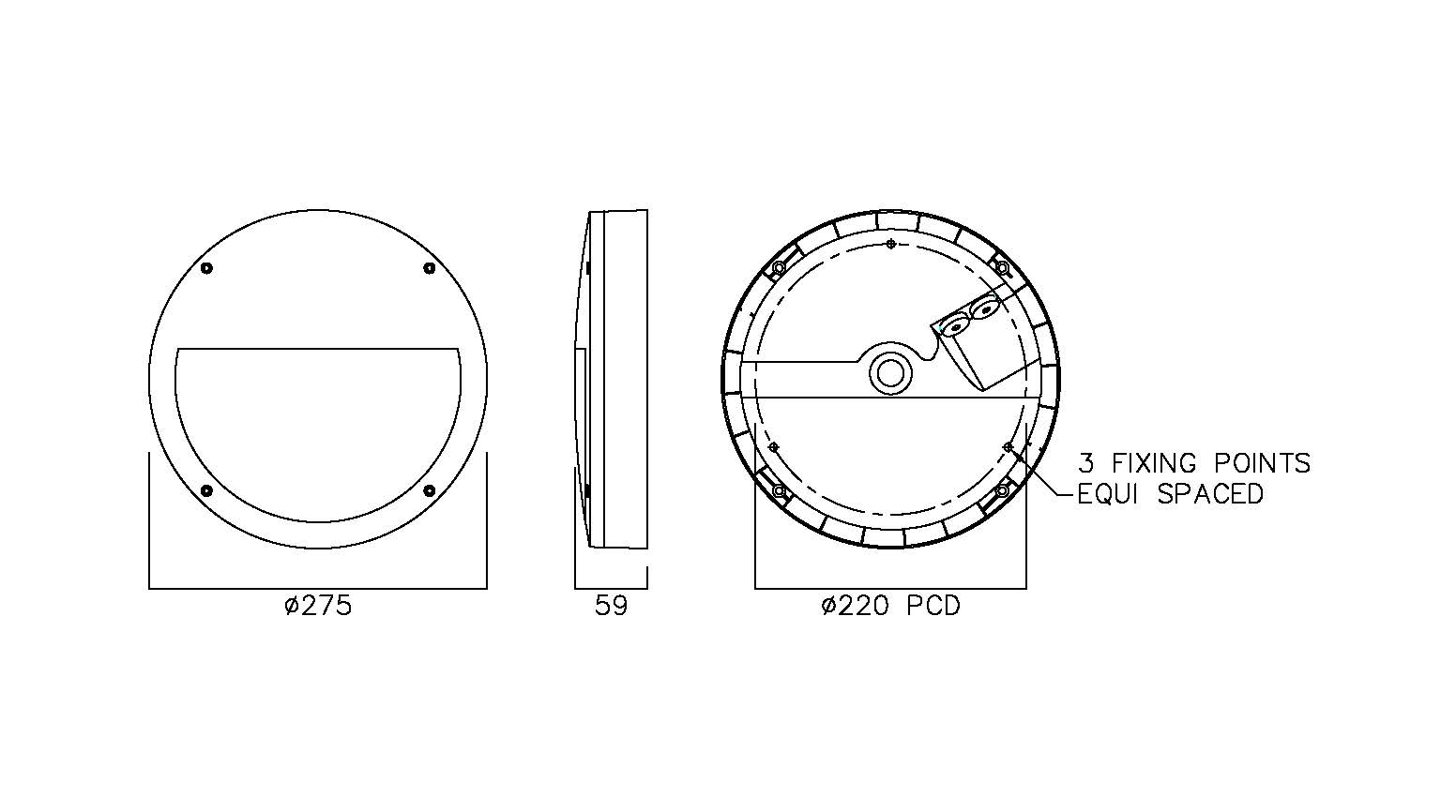

DIMENSIONS/WEIGHT
Dimensions
W: 0 - H: - DEPTH: 59 - DIAMETER: Ø275
Cut-out Size (mm)
Product Weight (kg)
0.91
Construction
Body Material
PC
Body Colour
Black RAL9005
Optical Material
Optical Finish
Termination
3x2x2.5mm sq. Push In Terminal
Driver - Integral or Remote
Integral
PACKAGING
Carton Dimensions (mm)
Quantity per Outer Carton
Total Weight incl. Carton (Kg)

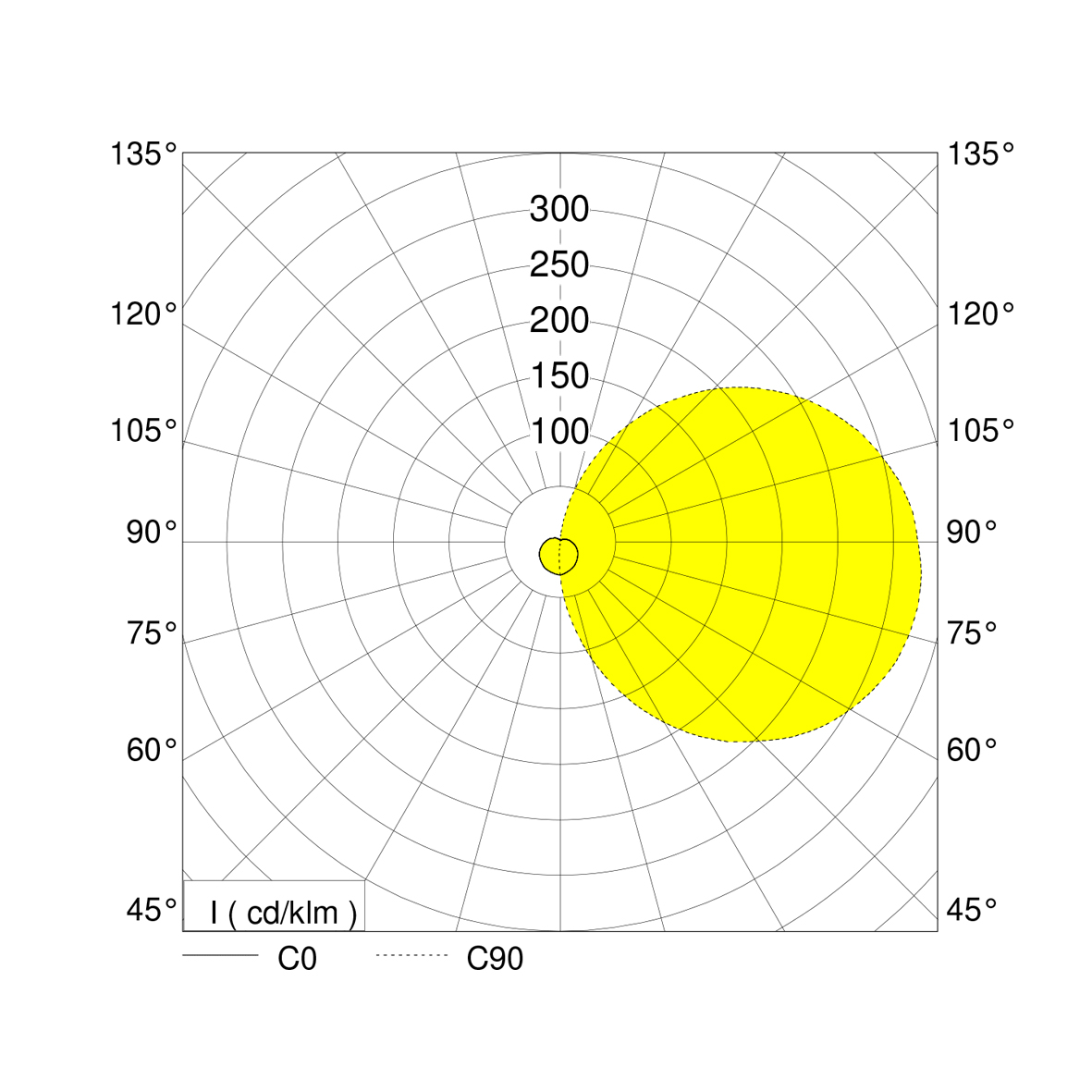

LUMINAIRE PERFORMANCE
Energy Rating
Luminaire Lumens (lm)
1240
Power Consumption (W)
12
Efficacy (l.lm/c.W)
104
Operating Temp. (Min/Max)
-30°C 45°C
LIGHT SOURCE
Type
LED
Correlated Colour Temp.
3000 / 4000 / 5700
Colour Rendering Index (CRI)
>80
Lumen Depreciation
L70 100000
SDCM
<3
ELECTRICAL INPUT
Voltage (V)
220-240V AC
Operating Frequency (Hz)
50
Inrush
<25A
Drivers per MCB *
B10=16 B16=28 C10=16 C16=28
Class
Class 2
Power Factor (PF)
>0.95
Cable Entry
Rear / Sides
ELECTRICAL OUTPUT
Forward Current (mA)
-
Forward Voltage (Vf)
EMERGENCY DATA
Mode of Operation
Battery Duration
Battery Type
Battery Specification
Ballast Lumen Factor (BLF)
DIMMING
DALI
Switch Dim
Corridor Function
Other
SENSORS
Microwave
PIR
PEC
STANDARDS/APPROVALS
CE / Cert of Conformity
Yes / Yes
Accreditations
BARCODE / E No. / S No.
EAN Number
5055943083905
E Number
7704681
S Number
4544013
