GENERAL INFORMATION
Product Code
NTT/4/27-37/DD/M3L/830-40-60
Product Range

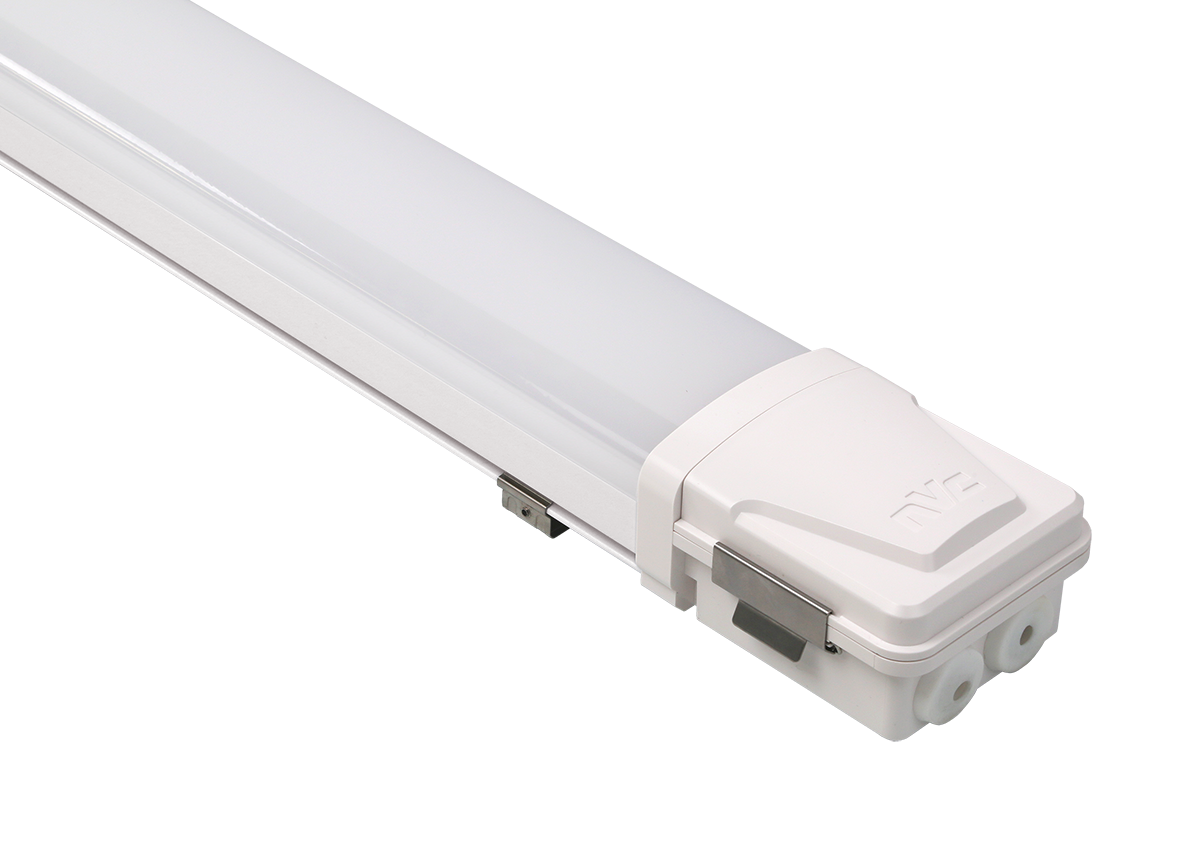

TORONTO
Product Category
Industrial
Fixing Method
Surface /Suspended
IP Rating
65
IK Rating
IK10
Warranty
7 Years
DIMENSIONS/WEIGHT
Dimensions

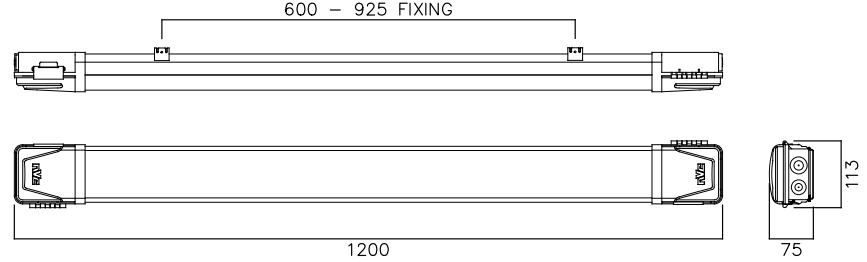

W: 113 - H: 75 - DEPTH: - DIAMETER:
Cut-out Size (mm)
Product Weight (kg)
Construction
Body Material
PC
Body Colour
White
Optical Material
PC
Optical Finish
Opal
Termination
5x2x2.5mm sq. Push In Terminal
Driver - Integral or Remote
Integral
PACKAGING
Carton Dimensions (mm)
Quantity per Outer Carton
Total Weight incl. Carton (Kg)
LUMINAIRE PERFORMANCE
Energy Rating
C
Luminaire Lumens (lm)
4212 / 4353 / 4491 (27W) 5570 / 5773 / 5929 (37W)
Power Consumption (W)
27 / 37
Efficacy (l.lm/c.W)
150 / 158 / 160 (27W) 149 / 159 / 161 (37W)
Operating Temp. (Min/Max)
-20°C to 25°C
LIGHT SOURCE
Type
LED
Correlated Colour Temp.
4000
Colour Rendering Index (CRI)
>80
Lumen Depreciation
L80 100000
SDCM
<3
ELECTRICAL INPUT
Voltage (V)
220-240V AC
Operating Frequency (Hz)
50/60
Inrush
<25A
Drivers per MCB *
B10=16 B16=28 C10= 16 C16=28
Class
Class 1
Power Factor (PF)
>0.95
Cable Entry
Ends
ELECTRICAL OUTPUT
Forward Current (mA)
-
Forward Voltage (Vf)
EMERGENCY DATA
Mode of Operation
Battery Duration
3 Hours
Battery Type
LiFePO4
Battery Specification
3.2V, 3Ah
Ballast Lumen Factor (BLF)
DIMMING
DALI
Yes
Switch Dim
Yes
Corridor Function
Other
SENSORS
Microwave
PIR
PEC
STANDARDS/APPROVALS
CE / Cert of Conformity
Yes / Yes
Accreditations
BARCODE / E No. / S No.
EAN Number
5056673217868
E Number
7220106
S Number
4339155
