GENERAL INFORMATION
Product Code
NTU/PRO/UGR/66/830/ND
Product Range

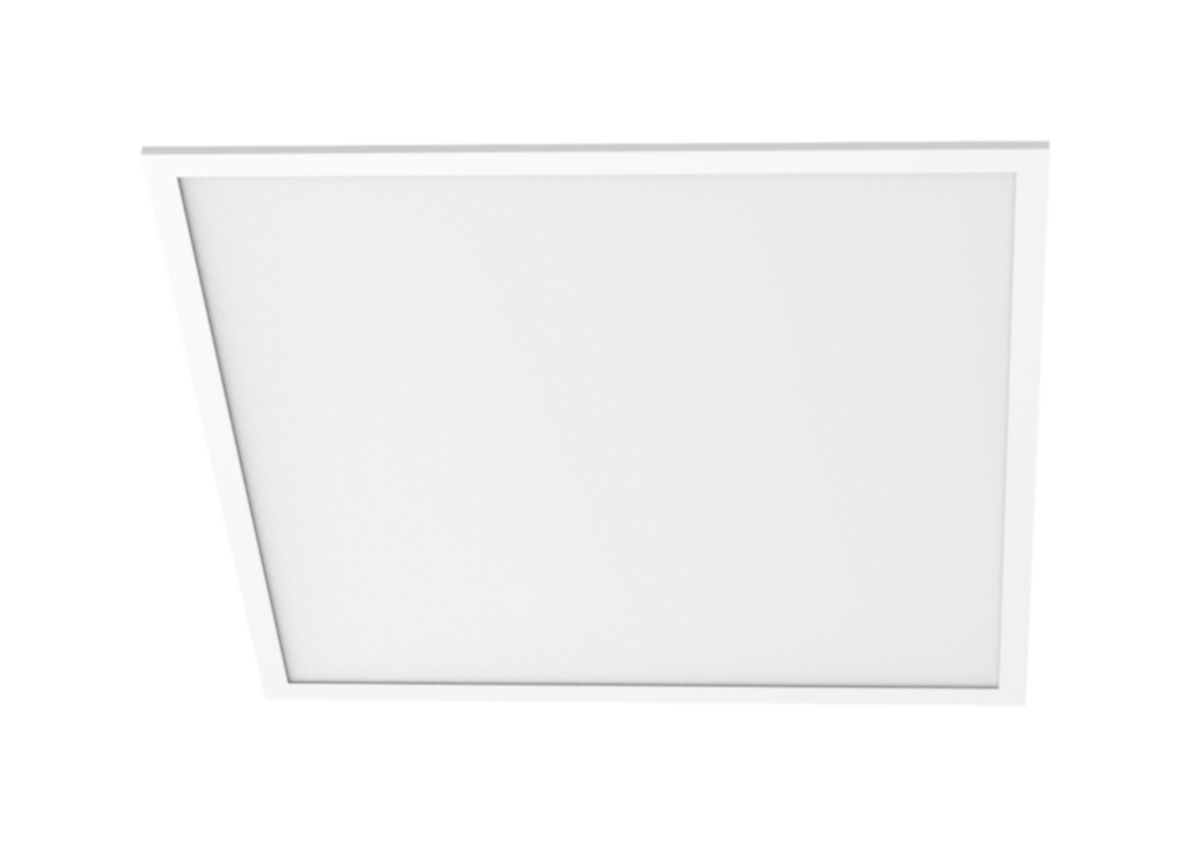

TULSA PRO
Product Category
LED Panels
Fixing Method
Recessed
IP Rating
44
IK Rating
Warranty
7 Years
DIMENSIONS/WEIGHT
Dimensions
W: 595 - H: 34 - DEPTH: - DIAMETER:
Cut-out Size (mm)
Product Weight (kg)
2.9
Construction
Body Material
Extruded Aluminium
Body Colour
White RAL9016
Optical Material
Optical Finish
Termination
On driver (Supplied separately)
Driver - Integral or Remote
Remote (Supplied separately)
PACKAGING
Carton Dimensions (mm)
620x620x30
Quantity per Outer Carton
Total Weight incl. Carton (Kg)
LUMINAIRE PERFORMANCE
Energy Rating
C
Luminaire Lumens (lm)
1832 - 3471 / 2909 - 6301
Power Consumption (W)
11 - 35
Efficacy (l.lm/c.W)
Up to 184
Operating Temp. (Min/Max)
-20°C to 25°C
LIGHT SOURCE
Type
LED
Correlated Colour Temp.
3000
Colour Rendering Index (CRI)
>80
Lumen Depreciation
L90 100000
SDCM
<3
ELECTRICAL INPUT
Voltage (V)
See driver
Operating Frequency (Hz)
See driver
Inrush
See driver
Drivers per MCB *
See driver
Class
Class 2
Power Factor (PF)
See driver
Cable Entry
On Driver
ELECTRICAL OUTPUT
Forward Current (mA)
-
Forward Voltage (Vf)
EMERGENCY DATA
Mode of Operation
Battery Duration
Battery Type
Battery Specification
Ballast Lumen Factor (BLF)
DIMMING
DALI
Switch Dim
Corridor Function
Other
SENSORS
Microwave
PIR
PEC
STANDARDS/APPROVALS
CE / Cert of Conformity
Yes / Yes
Accreditations
BARCODE / E No. / S No.
EAN Number
5056673228956
E Number
7028836
S Number
4283811
